PLIN-USB
search
  • PLIN-USB

PLIN-USB

€213.00
Tax excluded

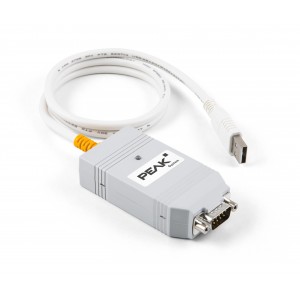

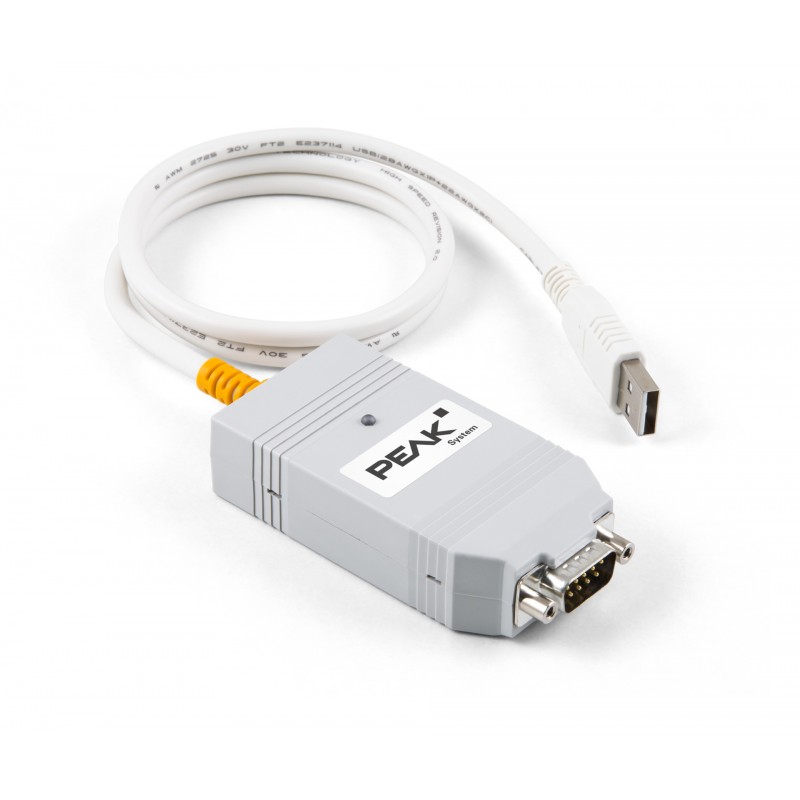

LIN Interface for USB (isolated)
LIN Interface for USB (isolated)
  • Compliant with all LIN specifications (up to 2.2)
  • Transmission speed from1 kbit/s up to 20 kbit/s
  • Can be used as a LIN master or slave
  • Automatic bit rate, frame length, and checksum type recognition
  • LIN connection short-circuit-proof against transceiver supply and ground
  • LIN D-sub 9 pin connector
  • NXP TJA1028T LIN transceiver
  • Power supply via USB, LIN supply via Dsub pin 9, 6 - 28 V DC
  • Optoisolation up to 500V
  • Extended operating temperature range from -40 to 85° C
IPEH-004052

Data sheet

Interface/bus
USB
Isolation
yes
LIN
yes
Connector
Dsub

Download

PLIN-USB

karta katalogowa/data sheets

Download (1.31MB)
