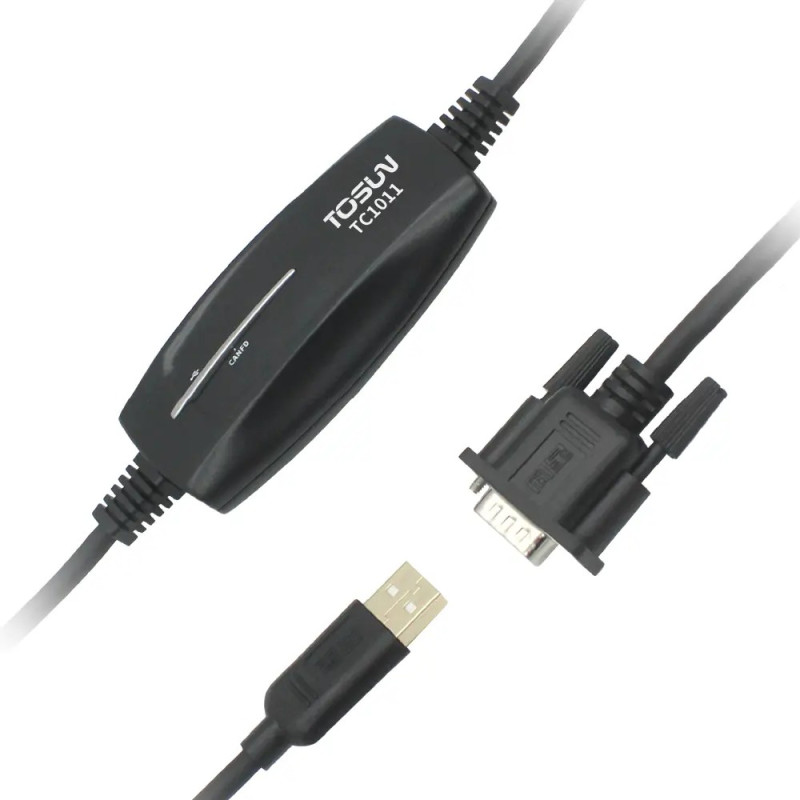

TC1011
€340.00
Tax excluded
Single-channel CAN FD to USB interface
- Support CAN protocol 2.0A (standard-frame) and 2.0B (extended-frame) and FD
- Rates: frame up to 1 Mb/s; Data: up to 8 Mb/s
- D-sub 9pin connector (in accordance to the CIA 1021)
- USB 2.0
- Termination resistor: internal 120 Ω (software switchable)
- Timestamp resolution: 1 µs
- Isolation (up to 2500V)
- Buffering throughput: up to 20,000 messages/s RX & TX
- Supply: via USB
- Operating temp. range: –40 °C to +85 °C
TC1011
Data sheet
- Interface/bus
- USB
- CAN version
- FD
- Isolation
- yes
- Channels
- 1
- Connector
- Dsub
