PLIN-LWL
€842.00
Tax excluded

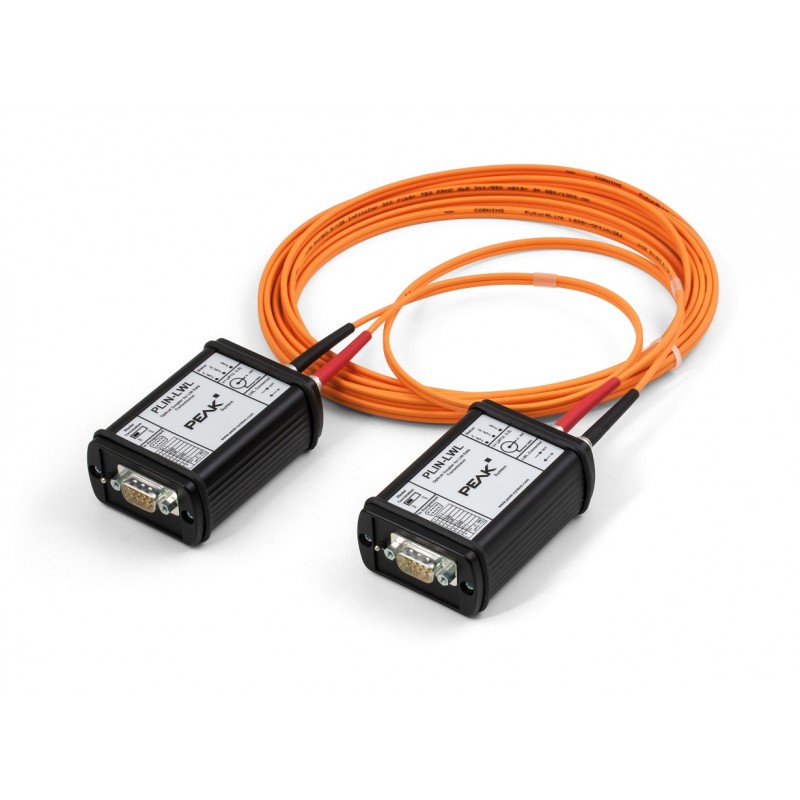

Fiber optic coupler for LIN
Description
Product Details
Attachments
Signal Conversion LIN to an optical signal transmitted through the optical fiber
Bit rates from 2.4 kbit/s up to 20 kbit/s
Switchable master termination
TJA1028 LIN transceiver
D-sub 9pin connector
Aluminum housing
External power supply or via the D-sub connector (8-30V)
Temperature: -40°C - +85°C
Set includes: fiber optic cable (5/10m), 2 x converter
Reference
IPEH-004049
Data sheet
LIN
yes
Fiber optic
yes
Download
PLIN-LWL
karta katalogowa/data sheets
Download (1.32MB)
