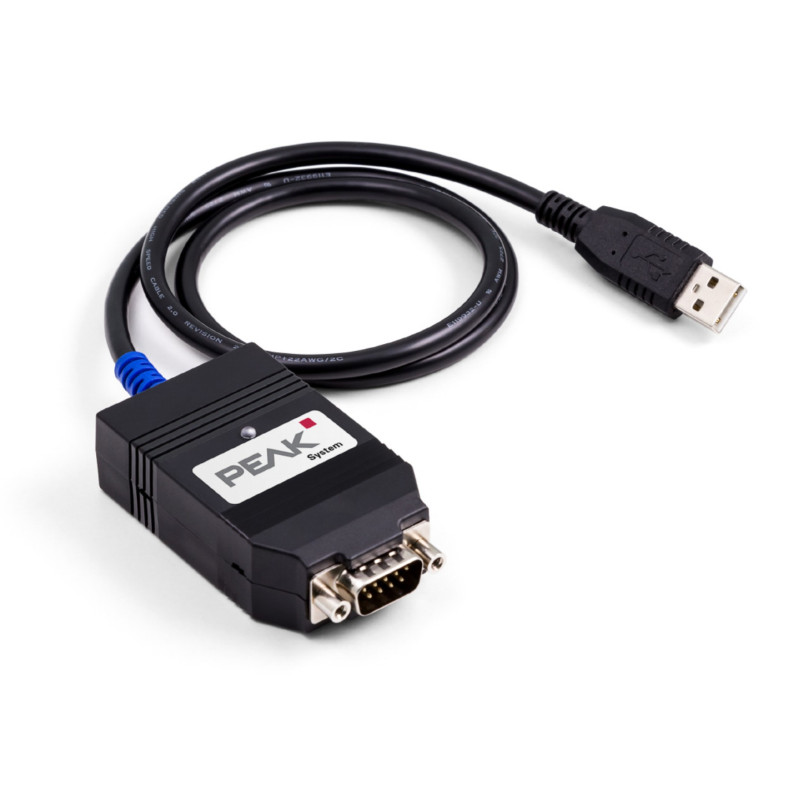

PCAN-USB-XL
€1,250.00
Tax excluded
USB Interface for CANbus XL, bundle with PCAN-Explorer 7, "early" version (4q 2025)
- Bundle: 1 x PCAN-USB XL or 2 x PCAN-USB XL, plus PCAN-Explorer 7 ("early access")
- CAN interface for High-speed USB 2.0 (compatible to USB 3.0)
- High-speed CAN connection (ISO 11898-2 2024)
- Complies with CAN specifications CAN CC (classic CAN 2.0), CAN FD, and CAN XL (ISO 11898-1 2024)
- CAN bit rates from 20 kbit/s up to 1 Mbit/s
- CAN FD data bit rates up to 8 Mbit/s
- CAN XL data bit rates up to 8 Mbit/s, CAN FD compatible transmission mode
- CAN XL data bit rates up to 20 Mbit/s by using the transceiver mode switch
- CAN bus connection via D-Sub, 9-pin
- Time stamp resolution 1 µs
- FPGA implementation of the CAN XL
- CAN SIC XL transceiver TI TCAN6062V
- Galvanic isolation up to 500 V
- CAN termination can be activated through solder jumpers
- Voltage supply via USB
- Extended operating temperature range from -40 to +85 °C
IPEH-005001
Data sheet
- Interface/bus
- USB
- CAN version
- XL
- Isolation
- yes
- Channels
- 1
- Connector
- Dsub
