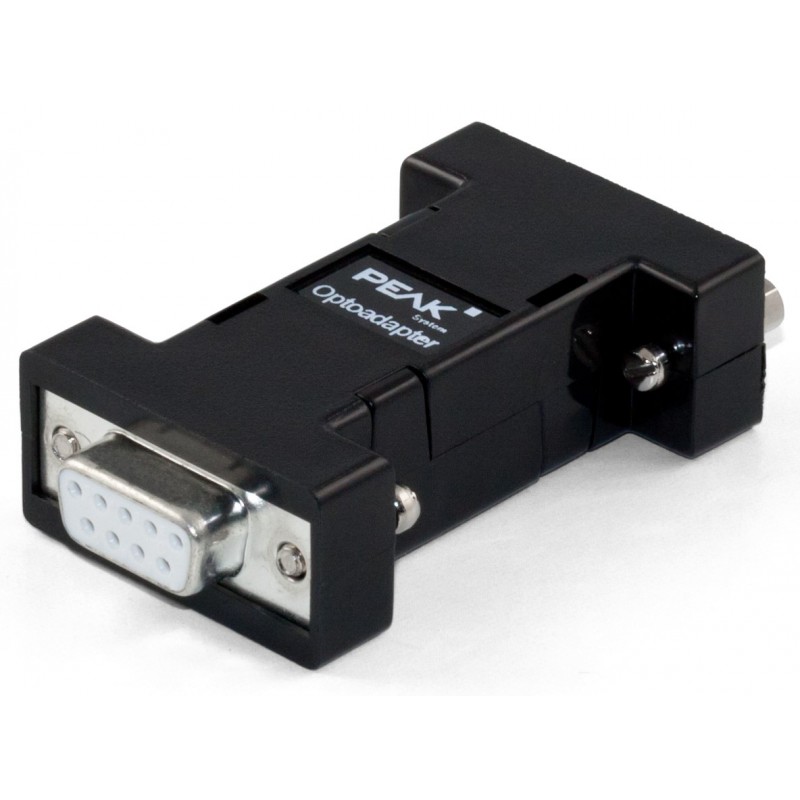

PCAN-Optoadapter
€100.00
Tax excluded
Adapter for Decoupling CAN and CAN FD
- Plug-on adapter for decoupling a CAN bus for PEAK CAN interfaces
- Galvanic isolation by DC/DC converters up to 500 V
- Bit rates from 5 kbit/s up to 1 Mbit/s, CAN FD - 2 Mbit/s
- High-speed CAN transceiver NXP PCA82C251
- CAN bus connection via D-Sub, 9-pin
- LED for status indication of the supply voltage
- 120-Ohm bus termination at the female D-Sub connector
- 5-Volt power supply through pin 1 of the High-speed CAN connection.
- Extended operating temperature range from
- -40°C to 85°C
IPEH-002038
Data sheet
- CAN version
- 2.0A/2.0B
FD - Isolation
- yes
