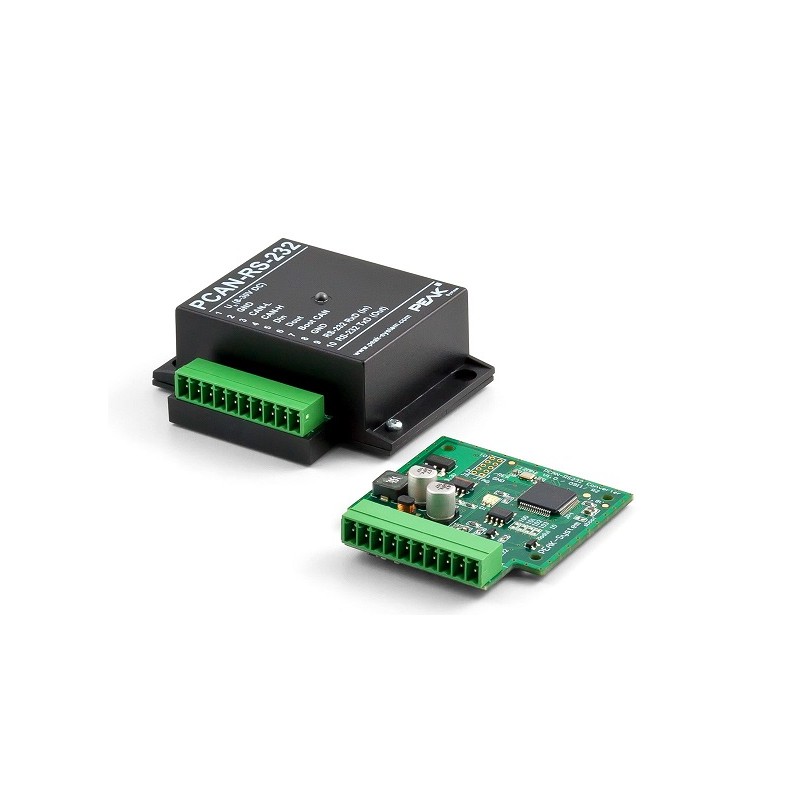

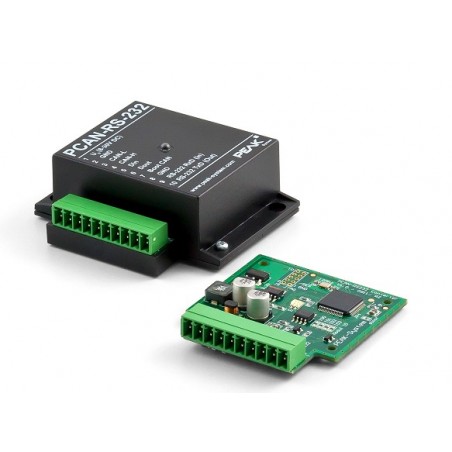

PCAN-RS-232
search
  • PCAN-RS-232

PCAN-RS-232

€140.00
Tax excluded
Router/converter CAN bus - RS232, programmable

Router/converter CAN bus - RS232, programmable

  • NXP LPC21 series microcontroller (16/32-bit ARM CPU)
  • 32 kbyte EEPROM
  • High-speed CAN channel (ISO 11898-2) with bit rates from 40 kbit/s up to 1 Mbit/s
  • Complies with CAN specifications 2.0 A/B
  • Data transfer between CAN and RS-232 with a maximum bit rate of 115,200 bit/s
  • One digital input and one digital output (low-active)
  • 2-color LED for status signaling
  • Connection via a 10-pole terminal strip (Phoenix)
  • Voltage supply from 8 to 30 V
  • Temperature: -40°C - +85°C
  • New firmware can be loaded via CAN interface
IPEH-002100

Data sheet

Interface/bus
RS232/RS485
CAN version
2.0A/2.0B
Isolation
no

Download

PCAN-RS-232

karta katalogowa/data sheets

Download (1.32MB)
