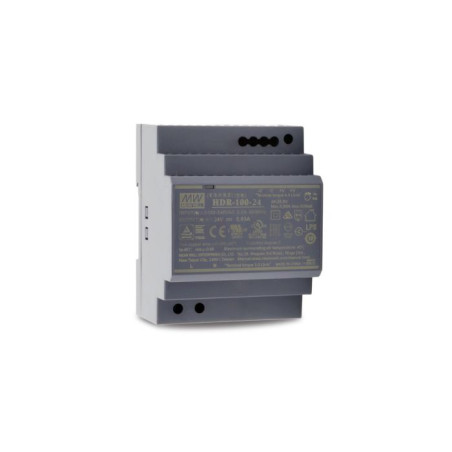

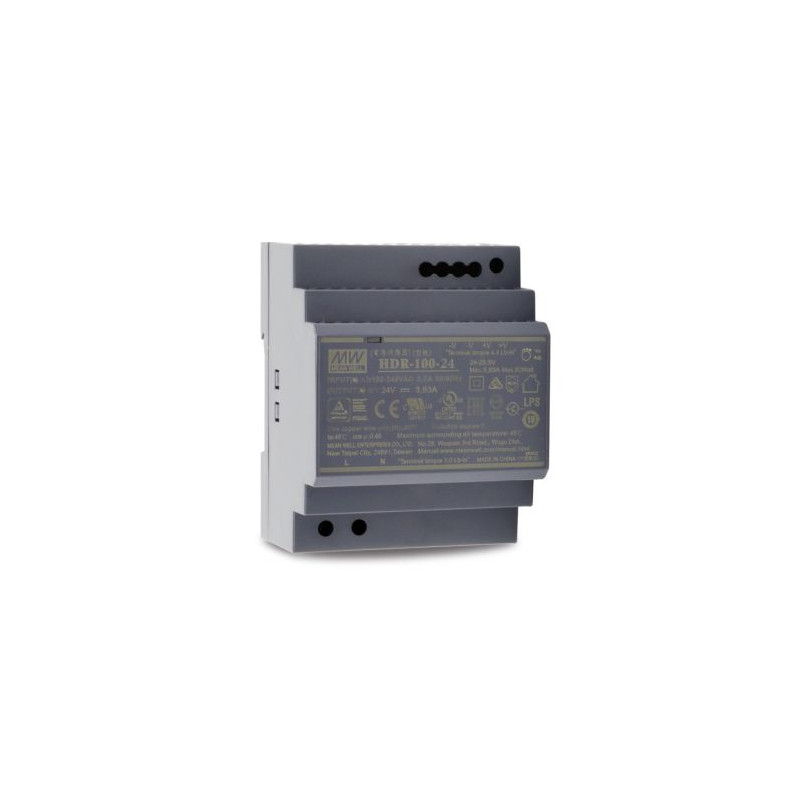

Controlpro power supply DIN rail 92W/24V

Controlpro power supply, DIN rail, 92W/24V

• Output voltage: 24 V DC, adjustable: 24 - 25,5 V DC
• Rated current: 3.83 A
• Input voltage: Universal input: 85-264 V AC
• Rated power: 92 W
• No-load consumption: <0.3 W
• Efficiency: 90 %
• Dimensions (W x H x D): 70 x 90 x 54.5 mm (4 SU)
• Format: DIN rail TS-35 (7.5 or 15 mm)
• Net weight: 260 g
• Temperature (operation): -30 to +70°C (under free convection)
• Temperature (storage): -40 to +85°C
• Relative humidity (operation): 20 - 90% (non-condensing)
• Relative humidity (storage): 10 - 95% (non-condensing)
• Directives fulfilled: EN55032: Class B, EN61000-3-2: Class A, EN61000-3-3, EN61000-4-2, -3, -4, -5, -6, -8, -11 IEC60950-1 (meets LPS requirements), UL508, UL60950-1, EN61558-2-16
• Protection against overvoltage, short-circuit, overload
• Protection class II
