Controlpro QC-16-500

€4,200.00
Tax excluded

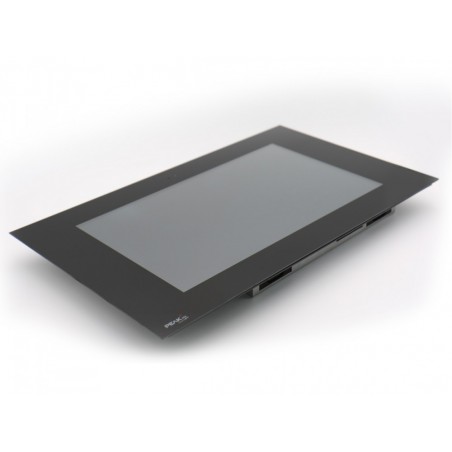

Controlpro QC-16-500 - reliable 18.5" multi-touch KNX control panel for home/building automation

Controlpro QC-16-500 - 18.5" multi-touch KNX control panel

Specifications

  • Touch technology: PCAP touch screen (Projective Capacitive Touchscreen) with 10 finger operation
  • Processor: Intel Quad-Core, fanless – silent
  • Hard drive: 500 GB SSD
  • RAM: 16 GB
  • Panel: 18.5" Full HD LED LCD
  • Stainless steel housing and aluminum frame

Equipment

  • Webcam: HD Webcam 5 Megapixel
  • Speaker: Broadband Speaker 2x 2Watt
  • Microphone: Microphone with room characteristics

Ports

  • 2x USB front port
  • 4x USB 3.0
  • 1x Ethernet GLAN
  • 1x Audio Out
  • 1x Audio In
  • 1x VGA Out
  • 1x HDMI
  • 2x KNX

 Software

  • Operating system: Windows 10 IoT Enterprise LTSC
  • YOUVI software package basic

 Dimensions

  • Dimensions: panel computer without glass cover (W x H x D): 535 mm x 320 mm x 50 mm
  • Dimensions: glass cover (W x H x D): 560 mm x 330 mm x 1.8 mm

Supply and power consumption

  • Supply voltage: 15-20 V DC
  • Max. current: in operation: 4 A, PC boot process: 4.5 A
  • Power consumption operation: 40 W (max. equipment)
  • Power consumption standby: 1.5 W
PNX11-20003

Download

Controlpro panel

specyfikacja techniczna/data sheets

Download (3.08MB)
