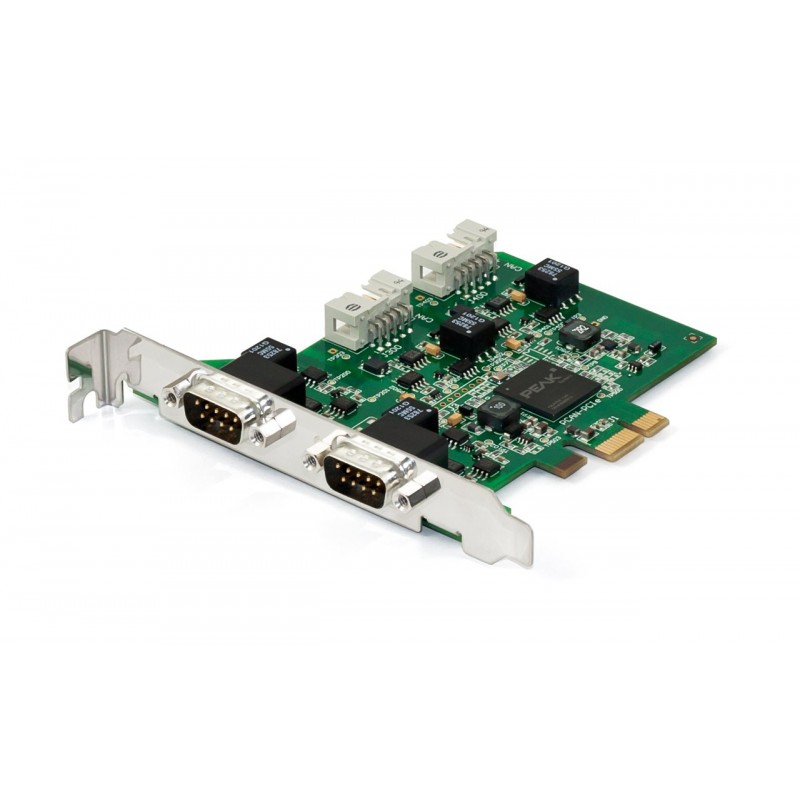

PCAN-PCIe-1-ISO
search
  • PCAN-PCIe-1-ISO

PCAN-PCIe

€242.00
Tax excluded
CAN Interface for PCIe, 1 or 2 chan., optoisolated
# of channels (select): 1
  • Versions: 1 or 2 channels
  • Transmission speed up to 1 Mb / s
  • CAN controller SJA1000 implemented in FPGA
  • Support CAN protocol 2.0A (standard-frame) and 2.0B (extended-frame)
  • D-sub 9 pin connector  (in accordance with the recommendations of the CIA 1021)
  • Receiver/Transmitter CAN - 82C251
  • Signals isolation (up to 500V)
IPEH-003026

Data sheet

Interface/bus
PCIe
CAN version
2.0A/2.0B
Isolation
yes
Channels
1-2

Download

PCAN-PCIe

karta katalogowa/data sheets

Download (1.31MB)
