Program for the creation of DAQ

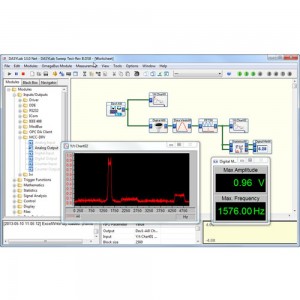

DASYlab (Data Acquisition System Laboratory) is a software tool designed to build software control and measurement applications. The package implements a graphical programming language that frees the application designer from cumbersome programming with traditional techniques such as VB, C, C ++, VC, Delphi, etc. The designer "draws" the algorithm for acquiring, processing and imaging acquired data in the form of a block diagram containing interconnected "blocks" representing individual functions (eg, reading 128 samples from 8 channels, scaling, averaging, plot of amplitude vs time). DASYlab allows the designer to focus on the algorithm itself, not on the tedious coding.
DASYlab is offered in several variants with a varying number of functional modules.
- Limited range of signal analysis functions (no filters, harmonic analysis)
- GPIB and RS232 support
- Limited number of network functions
- DAQ card support prod. MCC, NI, Advantech and many more
- No restrictions on the number of blocks, 200 layers
Free trial version (28 days) download
